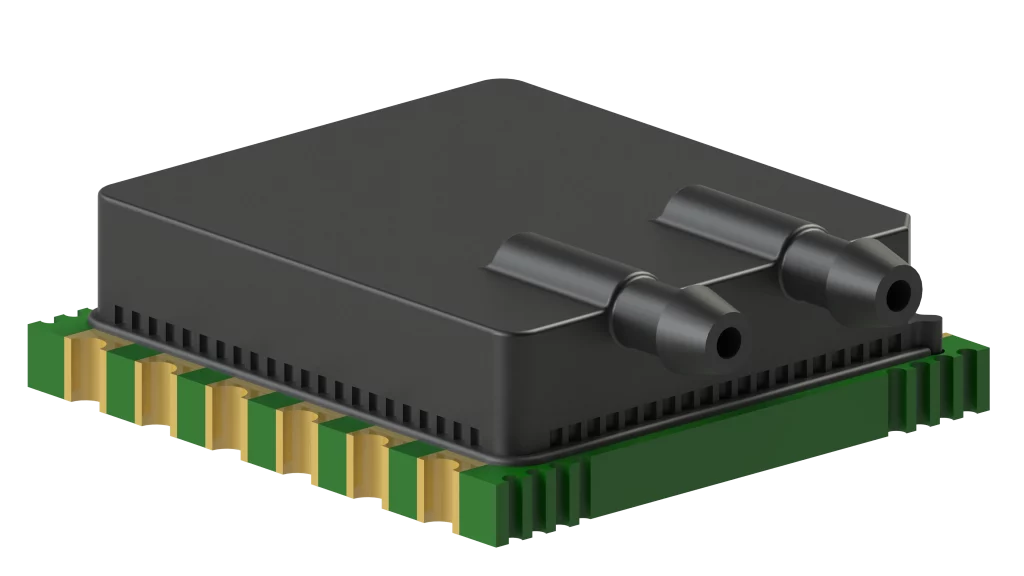

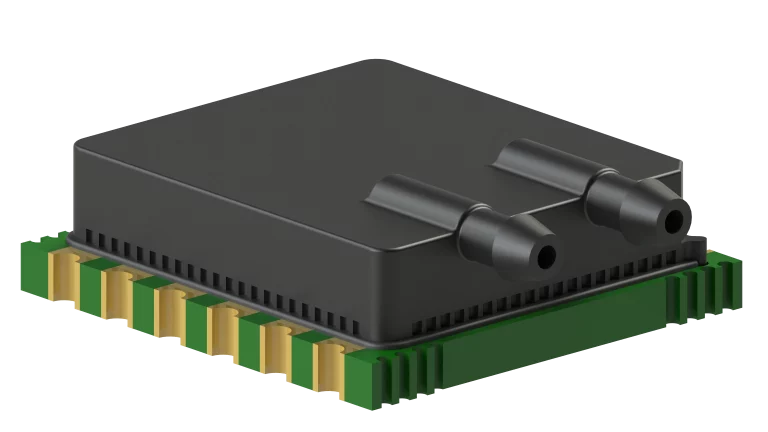

AUAV Series
The All Sensors AUAV family of combined-function sensors is designed specifically for the demanding requirements of Unmanned Aerial Vehicles (UAVs). Combining our very high-accuracy differential sensor technology with enhanced temperature compensation and linearity correction for our absolute sensor platform, the AUAV provides high-precision airspeed and altitude measurements.
This is achieved in a very compact PCB module compatible with automated SMT PCB Assembly processes. Interfacing to the flight control system is easily handled, with both I2C and SPI interfaces available. Multiple tubing port options are supported, including a lowprofile side-port configuration with only 2 tubing connections required.
Features
- Surface mount
- I2C or SPI interface
- Wide temperature range
- High precision airspeed and altitude measurements
- Differential pressure ranges from ±5 inH2O to ±30 inH2O
- Absolute operating range 250 … 1250 mbar
- Supply voltage 3.3 VDC
Application areas
There's more than meets the eye
This sensor option is not quite what you need? We happily customise every product exactly to your needs and to what your project or applications requires.
Alternatively have a look at our other sensor options.
Similar products:
- 3V, 3.3V and 5V supply voltage
- Amplified analog and digital outputs (I2C oder SPI)
- Custom calibrations
Pressure sensors – AUAV Series
- Differential pressure ranges from ±5 inH2O to ±30 inH2O
- Supply voltage 3.3 VDC
- High precision airspeed and altitude measurement
Pressure sensors – DLHR Series
- Pressure ranges from 0.5 inH2O to 60 inH2O
- Low and variable supply voltage from 1.68V to 3.6V
- Dual-Die Reference technology
Pressure sensors – ASTD Series
- Pressure ranges from 1 mbar to 10 bar
- Single 3V or 5 V supply
- Small footprint, low profile
Pressure sensors – ASSD Series
- Pressure ranges from 200 mbar to 35 bar
- 5V supply voltage
- Rugged stainless steel isolated package
Pressure sensors – ELVX Series
- Pressure ranges from ±0.5 to ±60 inH2O
- 3.3V or 5V supply voltage
- PCB surface mount
